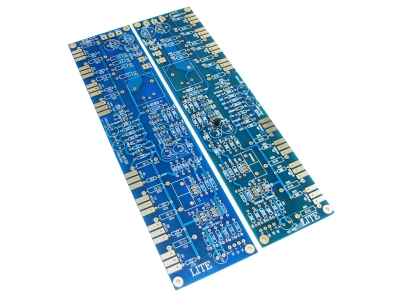

M-10 bare-board
$34.00
M-10 bare-board
Class A power Amp, circuit base on Alpha 5
each channel using 8 pcs of Power MosFet on board speaker protect circuit
left and right channel pcb is symmetric design
board size: 260mm X 65mm X2mm thick
